The basic specifications of the magnetic pyrolysis device apparatus

fuel Unnecessary
The temperature in the furnace 300 ° C ~ 500 ° C
Volume reduction system Magnetic pyrolysis
Volume reduction period 6 to 12 hours
Injection numbers in a day 2 to 4 times
Residue (Product) Weak alkaline inorganic material

(available in soil improvement)
Rare metal recovery Possible
Volume reduction rate 1/200 – 1/400
Dioxin hazardous substances It does not occur
durability High

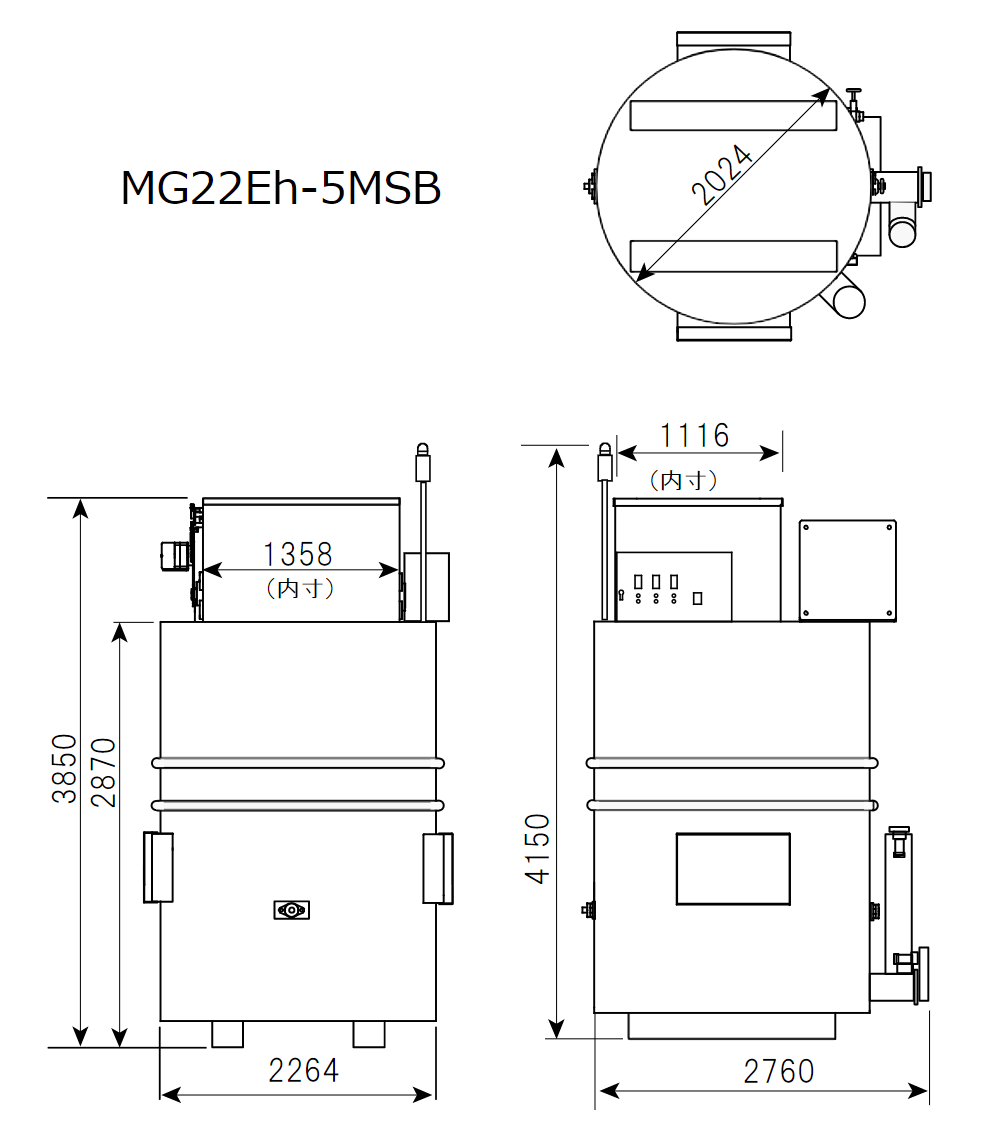

Magnetic pyrolysis device  pyrolyzer 5㎥ model MG22Eh-5MSB

磁気熱分解装置 5㎥ MG22Eh-5MSB

Product Specifications

  1. Automatic operation by the electrical control
  2. Maximum input number
    MG22Eh-5MSB: 5.0m³ (Normal 4.0m³), continuous introduction possible from the second time　can be　continuously charged from the second time
  3. The amount of processing per day
    3t (at the time three times a day, is turned on, change depending on the type of waste)

Specification  / Rating

  1. Gross weight
    MG22Eh-5MSB:about2500kg
  2. Size
    MG22Eh-5MSB: (W) width 2264mm (H) height 4150mm (L) length 3400mm
  3. Magnet holder
    MG22Eh-5MSB: 16 groups

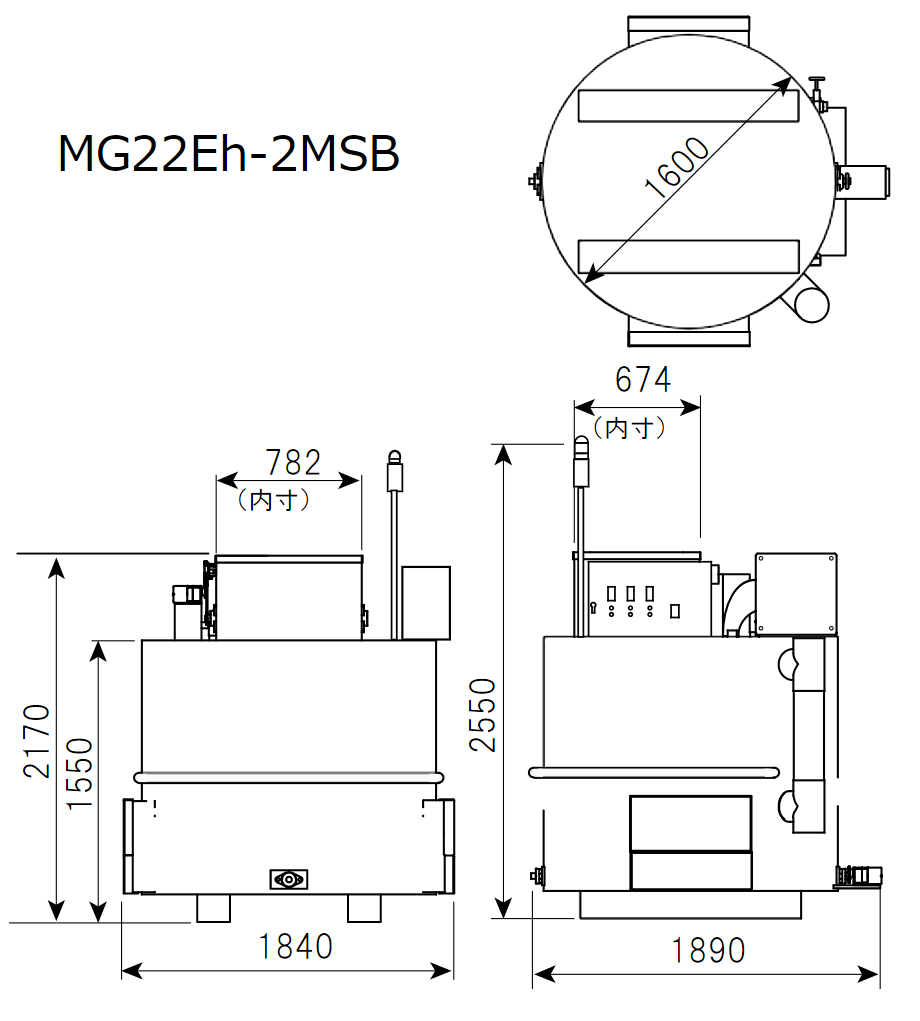

Magnetic pyrolysis device  pyrolyzer 2㎥ model MG22Eh-2MSB

磁気熱分解装置 5㎥ MG22Eh-5MSB

Product Specifications

  1. Automatic operation by the electrical control
  2. Maximum input number
    MG22Eh-2MSB: 2.0m³ (Normal 1.6m³), continuous introduction possible from the second time can be continuously charged from the second time
  3. The amount of processing per day
    1.5t (at the time three times a day, is turned on, change depending on the type of waste)

Specification  / Rating

  1. Gross weight
    MG22Eh-2MSB:about1800kg
  2. Size
    MG22Eh-2MSB: (W) width 1840mm (H) height 2550mm (L) length 1890mm
  3. Magnet holder
    MG22Eh-2MSB: 8 groups

Common Specification of Magnetic pyrolysis device apparatus common specifications

Operation specification

  1. Exhaust gas purification scrubber
    Power supply : 200V single phase、0.8kw / h
    automatic drainage (wastewater time drainage time adjustable)
    size :  MGSB-0100:1000mm(W)×800mm(L)×2470mm(H)
  2. Operation ; Automatic control type after operation control organic matter filling
  3. Indoor installation specifications body than external temperature 50 ° C.
  4. Charging port outside the door within the door electric opening and closing
  5. Operating temperature automatic adjustment (set movable range room temperature ~ 300 ° C.)
  6. The air intake (pyrolysis chamber = temperature control automatic control, the combustion chamber = constant inhalation)
  7. Inflow water amount per hour 5L ~ 10L
    (outflow = heating steam Vapor pressure 0.5 ~ 0.7Mpa safety valve operation pressure 0.8 = 1.0Mpa)
  8. Accessories
    stairs
    options: drier-lifter, hot water tank and steam power generation equipment

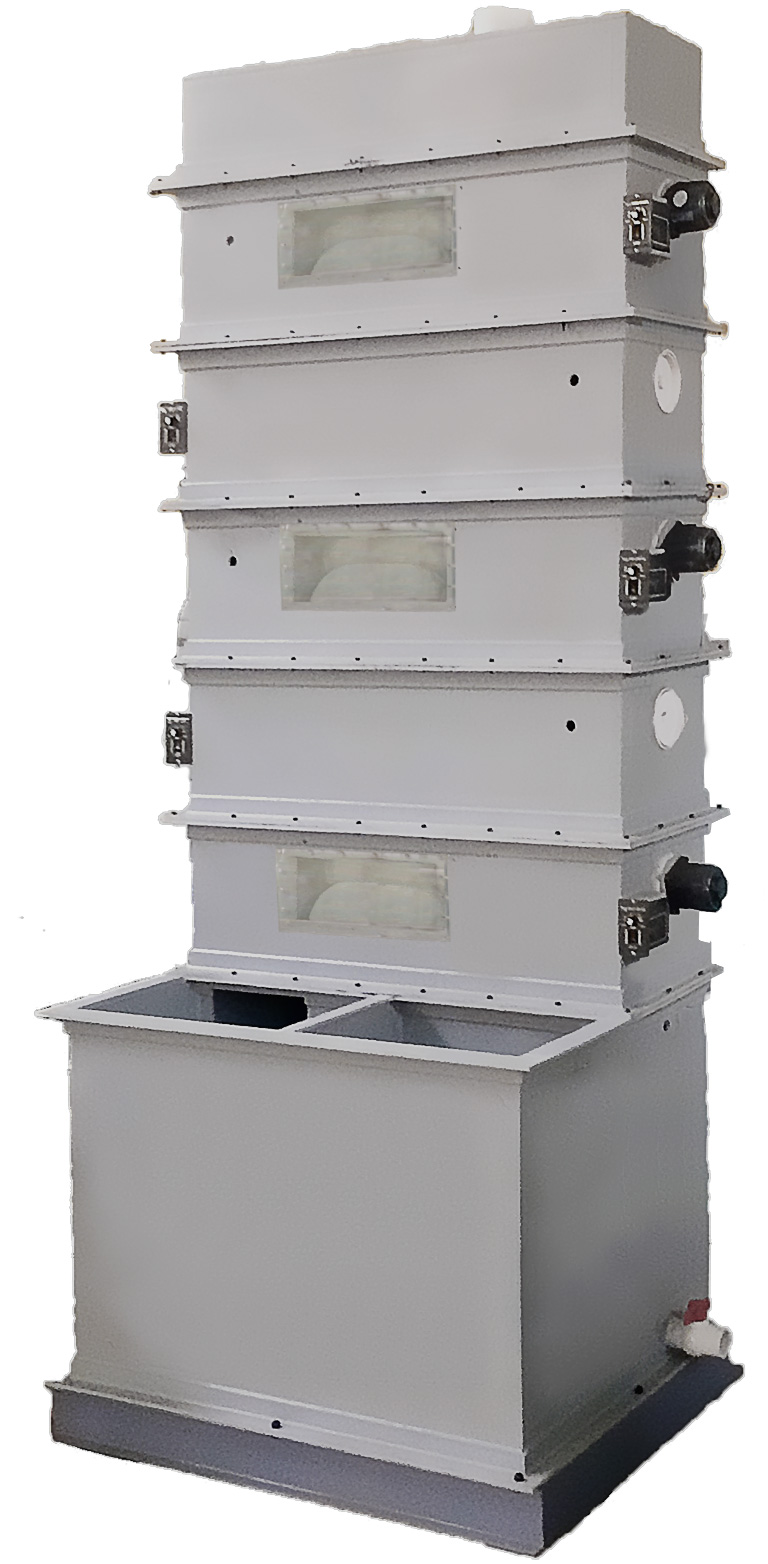

排気ガス浄化スクラバー

Exhaust gas purification scrubber

Installation location

  1. To the floor 50㎥ ceiling of concreting height 5m · carry frontage 3m × locking can place a height of 4m.
  2. Related equipment and electrical equipment (three-phase 200V), water supply and drainage sanitation construction work, such as air supply and exhaust equipment construction

ASMETELL JAPAN .INC

Asmetel Japan inc. is a regular primary agent of MG22 (Organic magnetic pyrolysis system)
We are doing questions, consultation and consulting about introduction.
